Stainless Steel Plain Dutch Weave Mesh

Plain Dutch Woven Wire Mesh is similar to plain weave wire mesh, while the warp wires are thicker and lie closer to each other. This type of woven stainless steel wire mesh is mainly used as industrial filter cloth and apparatus of separation.

Availability:



Inquire Add to Basket

Place of Origin:
China
Certification::
ISO9001 /ISO14001
Packaging Details:
Water proof paper inside, then packed in wooden box
Payment Terms::
L/C,D/A,D/P,T/T

Product Description

High Quality Anti Rust Used in Telecom-Communication of Stainless Steel 304 or 316 or 304L or 316L Plain Dutch Weave Wire Filter Mesh Cloth

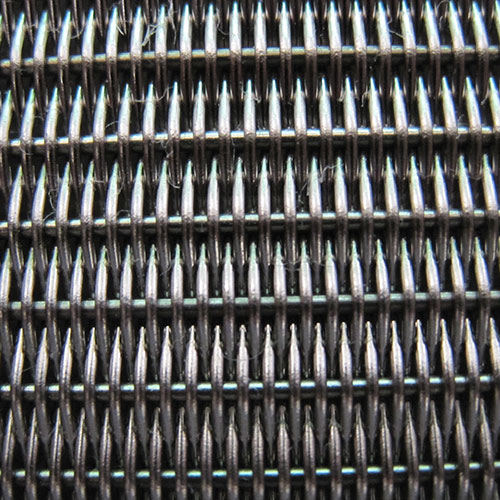

Stainless Steel Plain Dutch Weave Mesh

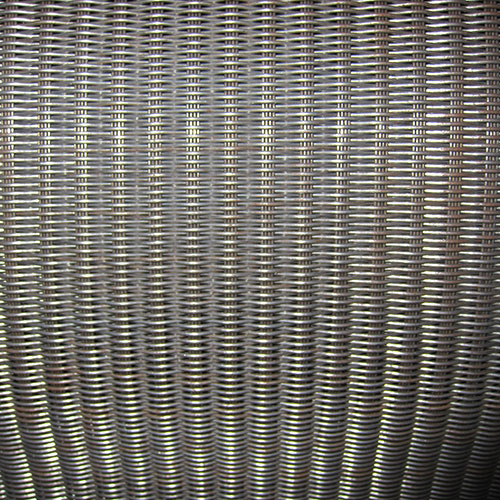

Stainless Steel Plain Dutch Weave Mesh

Plain Dutch Woven Wire Mesh is similar to plain weave wire mesh, while the warp wires are thicker and lie closer to each other. This type of woven stainless steel wire mesh is mainly used as industrial filter cloth and apparatus of separation.

Plain dutch weave mesh
Mesh		Wire diameter		Wire diameter		Aperture
warp	weft	warp	weft	warp	weft	Aperture
		mm	mm	inch	inch	μm
5.48	31	1.092	0.889	0.043	0.035	745
10	52	0.711	0.584	0.028	0.023	375
12	64	0.584	0.419	0.023	0.016	335
12	88	0.356	0.330	0.014	0.013	330
14	64	0.508	0.419	0.020	0.016	320
14	88	0.508	0.330	0.020	0.013	305
14	95	0.381	0.305	0.015	0.012	253
14	100	0.381	0.305	0.014	0.010	250
20	120	0.356	0.254	0.015	0.011	200
24	110	0.381	0.279	0.011	0.006	155
24	175	0.279	0.165	0.008	0.007	140
30	160	0.203	0.178	0.007	0.006	120
40	200	0.178	0.140	0.006	0.004	73
50	250	0.14	0.114	0.011	0.008	65
20	280	0.279	0.191	0.014	0.010	132
16	200	0.356	0.254	0.011	0.010	130
20	200	0.279	0.254	0.010	0.009	110
20	250	0.254	0.216	0.010	0.008	80
30	260	0.254	0.203	0.007	0.006	75
20	350	0.178	0.152	0.007	0.004	68
28	500	0.178	0.114	0.008	0.004	80
30	500	0.203	0.114	0.006	0.003	57
50	700	0.152	0.076	0.003	0.002	50
150	400	0.069	0.053	0.003	0.002	50

mesh warp x weft	wire mm warp x weft	apertureμm	effective section area%	weight kg/m2	thickness mm
7×40	0.9×0.71	347	14	6	2
7×44	0.71×0.63	319	14	5	2
8×45	0.8×0.60	310	16	5	2
8×85	0.45×0.315	275	27	3	1
8.5×60	0.63×0.45	296	20	4	2
10×76	0.5×0.355	248	22	3	1
10×90	0.45×0.28	249	29	2	1
12×64	0.56×0.40	210	16	4	1
12×86	0.45×0.315	211	21	3	1
12.5×76	0.45×0.355	192	16	3	1
14×76	0.45×0.355	173	14	3	1
14×100	0.40×0.28	182	20	3	1
14×110	0.355×0.25	177	22	2	1
16×100	0.4×0.28	160	18	3	1
16×120	0.28×0.224	145	19	2	1
17×120	0.355×0.224	155	22	2	1
20×110	0.355×0.25	126	15	2	1
20×140	0.315×0.20	133	22	2	1
20×170	0.25×0.16	130	29	1	1
25×140	0.315×0.224	115	16	2	1
25×140	0.28×0.2	100	15	2	1
24×110	0.355×0.25	97	11	2	1
28×150	0.28×0.18	92	16	2	1
30×150	0.25×0.18	82	14	2	1
30×140	0.315×0.20	77	11	2	1
35×190	0.224×0.14	74	17	1	1
35×170	0.224×0.16	69	13	2	1
40×200	0.18×0.135	63	15	1	0
45×250	0.16×0.11	56	15	1	0
50×250	0.14×0.112	53	-	1	-
50×270	0.14×0.10	50	15	1	0
50×300	0.16×0.09	55	20	1	0
60×270	0.14×0.1	39	11	1	0
60 ×300	0.14×0.09	41	14	1	0
60×500	0.14×0.055	51	34	1	0
65×390	0.125×0.071	42	19	1	0
65×750	0.10×0.036	36	37	0	0
70×340	0.125×0.08	35	13	1	0
80×400	0.10×0.07	40	-	1	-
80×600	0.1×0.045	37	30	1	0
80×700	0.125×0.04	40	38	1	0
80×430	0.125×0.063	32	17	1	0
100×600	0.10×0.045	-	-	1	-
100×800	0.10×0.035	-	-	1	-
100×1200	0.063×0.023	23	38	0	0
