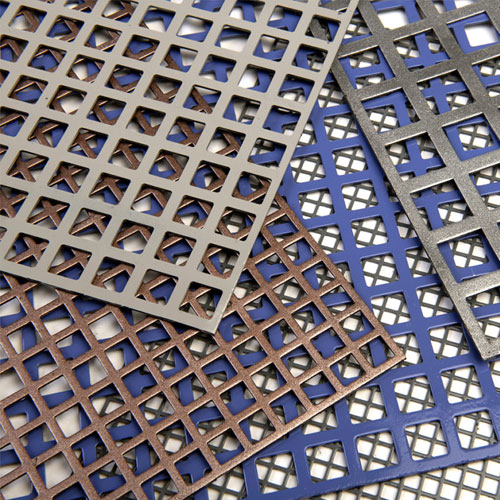

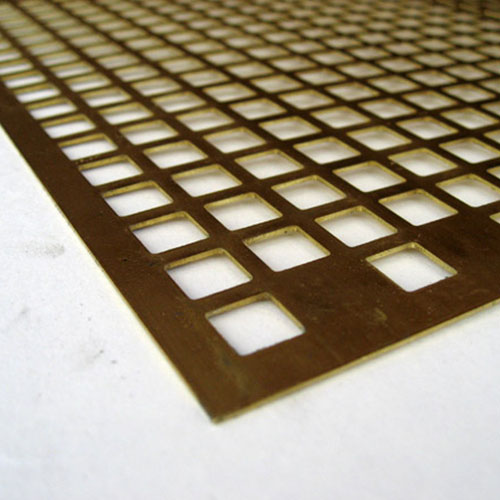

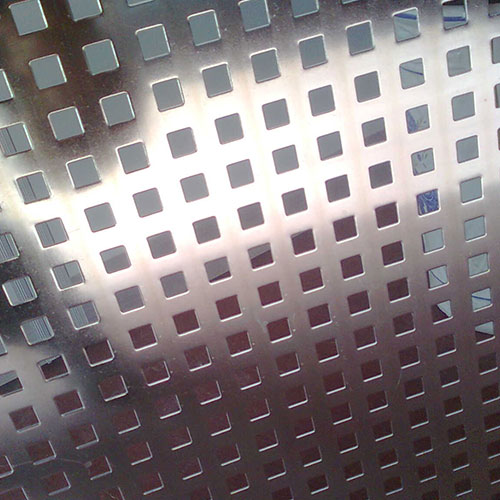

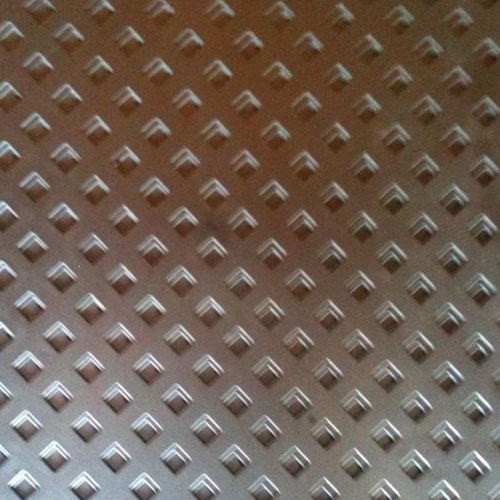

Square Hole Perforated Metal Sheet
|
For many, perforated metal square hole patterns are more visually appealing than round holes, a key consideration when the aesthetics of the product are of primary importance. Additionally, square hole perforated metal provides a larger open area.

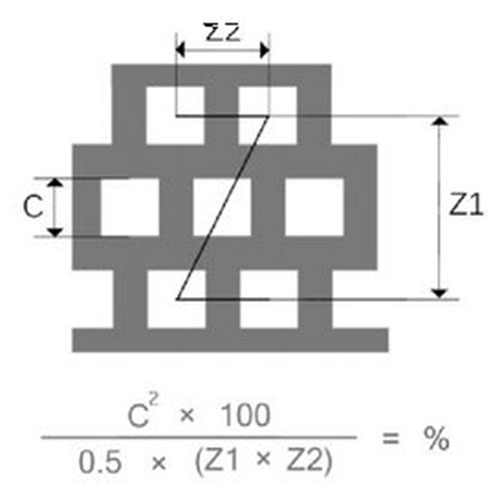

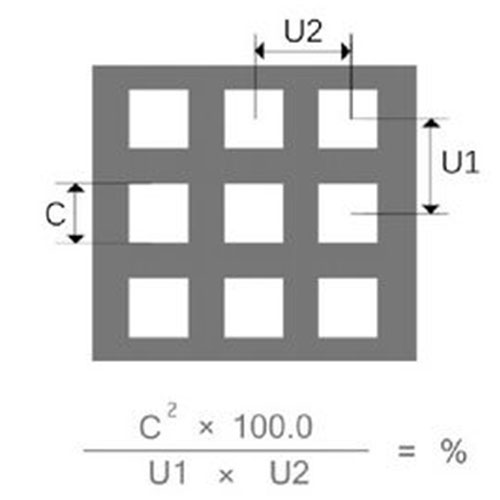

Square hole specification list
| Description | Hole dia | Pitch | OA | Thickness of plate |
| (mm) | (mm) | (%) | 0.8mm | 1.0mm | 1.5mm | 2.0mm | 2.5mm | 3.0mm |
| C3 U5 | 3.00 | 5.00 | 36% |
| ** | ** |
|
|
|
| C5 U7.5 | 5.00 | 7.50 | 44% |
| ** | ** | ** |
|
|
| C5 U8 | 5.00 | 8.00 | 39% |
| ** | ** | ** |
|
|
| C5.5 U7.5 | 5.50 | 7.50 | 54% | ** | ** | ** | ** |
|
|
| C5.5 U8 | 5.50 | 8.00 | 47% |
| ** | ** | ** |
|
|
| C6 U10 | 6.00 | 10.00 | 36% |
| ** | ** | ** | ** | ** |
| C6 U12 | 6.00 | 12.00 | 25% |
| ** | ** | ** | ** | ** |
| C7 U10 | 7.00 | 10.00 | 49% |
| ** | ** | ** | ** | ** |
| C8 U10 | 8.00 | 10.00 | 64% | ** | ** | ** | ** |
|
|
| C8 U12 | 8.00 | 12.00 | 44% |
| ** | ** | ** |
|
|
| C10 U12 | 10.00 | 12.00 | 69% |
| ** | ** | ** |
|
|
| C10 U14 | 10.00 | 14.00 | 51% |
| ** | ** | ** | ** | ** |
| C10 U15 | 10.00 | 15.00 | 44% |
| ** | ** | ** | ** | ** |
| C10 U20 | 10.00 | 20.00 | 25% |
| ** | ** |
|
|
|
| C15 U20 | 15.00 | 20.00 | 56% |
| ** | ** | ** | ** | ** |
| C19 U22 | 19.00 | 22.00 | 75% |
| ** | ** |
|
|
|
| C20 U28 | 20.00 | 28.00 | 51% |
| ** | ** | ** | ** | ** |
| C20 U40 | 20.00 | 40.00 | 25% |
| ** | ** | ** | ** | ** |
| C22 U44 | 22.00 | 44.00 | 25% |
|
|
|
|
| ** |
| C25 U50 | 25.00 | 50.00 | 25% |
|
| ** | ** |
|
|
| C30 U35 | 30.00 | 35.00 | 73% |
| ** | ** | ** |
|
|
| C30 U60 | 30.00 | 60.00 | 25% |
|
| ** | ** | ** | ** |
| C40 U50 | 40.00 | 50.00 | 64% |
|
| ** | ** | ** | ** |
| C40 U80 | 40.00 | 80.00 | 25% |
|
| ** | ** | ** | ** |
| C50 U100 | 50.00 | 100.00 | 25% |
|
| ** | ** | ** | ** |
