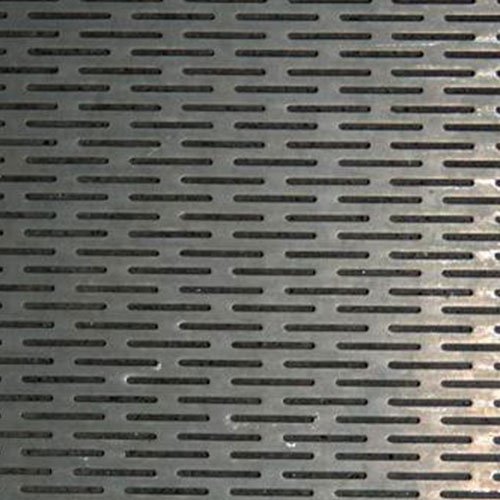

Slotted Hole Perforated Metal Sheet

Perforated sheets are used extensively for both industrial and architectural applications:
Industry for sieving
Industry for protection & ventilation
Architecture for function and appearance both internally and externally including:
Energy saving benefits, sound control and lighting effects

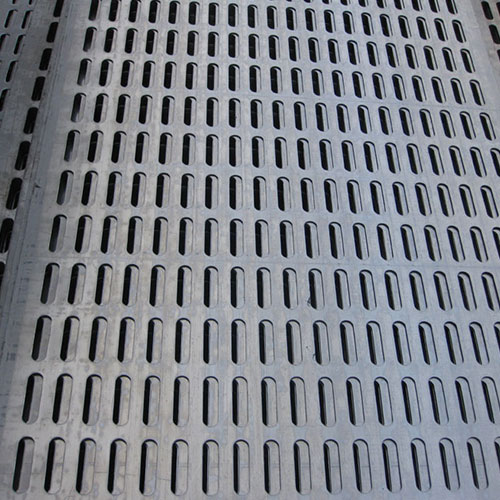

Slotted Hole Perforated Metal Sheet

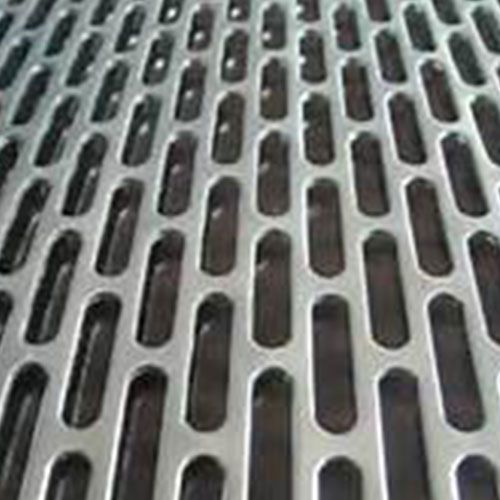

 Slotted Hole Perforated Metal Sheet

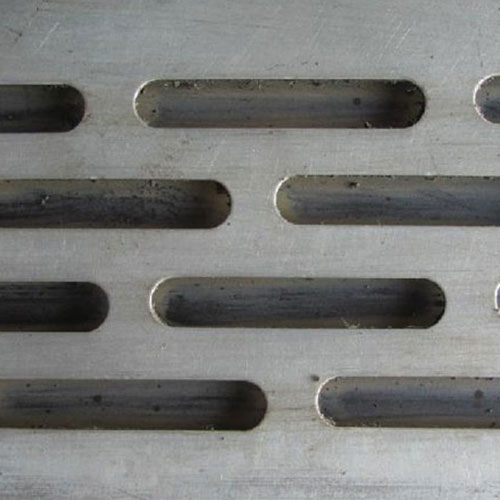

Slotted Hole Perforated Metal Sheet

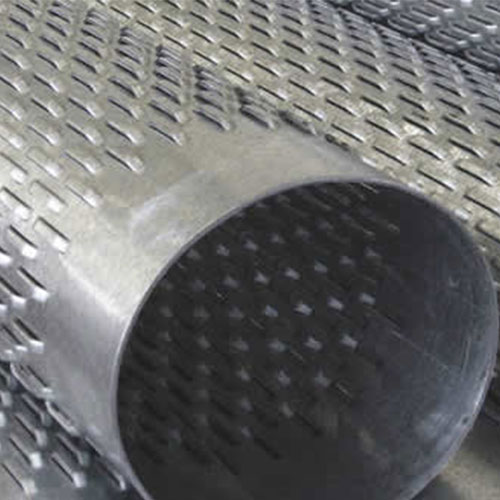

 Slotted Hole Perforated Metal Sheet

Slotted Hole Perforated Metal Sheet




Slotted Hole Perforated Metal Sheet

Slotted Hole Perforated Metal Sheet


Slotted Hole Perforated Metal Sheet Specification

Description Hole dia Hole pitch Open area Thickness

(mm) (mm) (%) 1.0mm 1.5mm 2.0mm 2.5mm 3.0mm
LR1 X 10Z 1 x 10 7 x 14 20% **



LR1.5 X 12Z 1.5 x 12 10.3 x 16 21% **



LR1.5 X 20Z 1.5 x 20 4 x 50 30% **



LR2 X 10Z 2 x 10 10 x 15 26% **



LR2 X 20Z 2 x 20 10 x 25 31% **



LR3 X 20Z 3 x 20 6 x 26 74% ** ** **

LR3 X 20Z 3 x 20 14 x 26 32% ** ** **

LR4 X 20Z 4 x 20 10 x 25 61% ** ** ** **
LR4 X 25Z 4 x 25 6.5 x 45 66% ** ** ** **
LR4.5 X 25Z 4.5 x 25 7 x 60 51% ** ** ** **
LR4.75 X 20Z 4.75 x 20 15 x 25 48% ** ** ** **
LR5 X 20Z 5 x 20 20 x 25 38% ** ** ** **
LR6 X 20Z 6 x 20 24 x 24.8 38% ** ** ** ** **
LR 6 X 20Z 6 x 20 26 x 40 22% ** ** ** ** **
LR7 X 20Z 7 x 20 13 x 47.5 42% ** ** ** ** **
LR7 X 25Z 7 x 25 30 x 30 37% ** ** ** ** **
LR8 X 40Z 8 x 40 26 x 47.5 50% ** ** ** ** **
LR10 X 40Z 10 x 40 20 x 50 76% ** ** ** ** **
LR2.1 X 20U 2.1 X20 5 X 25 33% ** **


LR2.4 X 20U 2.4 X 20 5 X 25 38% ** **


LR3 X 20U 3 X 20 5.5 X 25 41% ** ** **

LR4.5 X 20U 4.5 X 20 8 X 25 44% ** ** ** ** **
LR5 X 30U 5 X 30 9 X 35 46% ** ** ** ** **
LR7 X 25U 7 X 25 12 X 30 45% ** ** ** ** **
