Round Hole Perforated Metal Sheet Material:
Galvanized sheet, Cold sheet, stainless steel sheet, Aluminum board,Al-mg Alloy sheet, etc.
Round Hole Perforated Metal Sheet Standard Size
1000MM X 2000MM 1220MM X 2440MM 1250MM X 2500MM
1250MM X 6000MM 1500MM X 3000MM 1500MM X 6000MM
Cutting& Folding
KDL can do cutting and folding after perforating according to your request.
Round Hole
 | | |

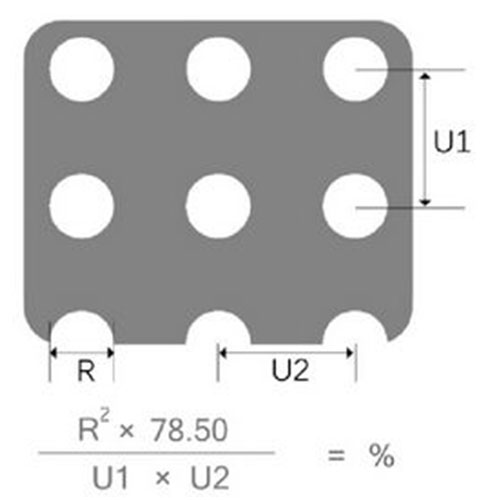

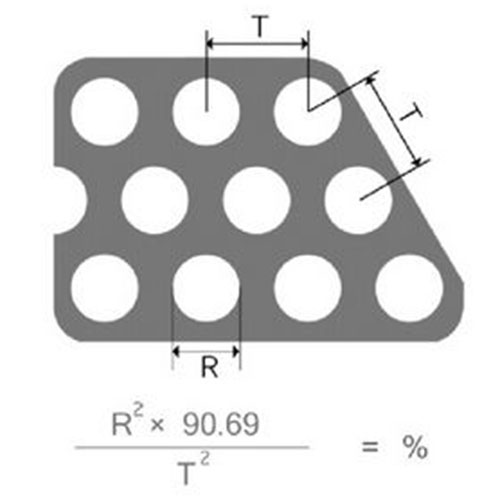

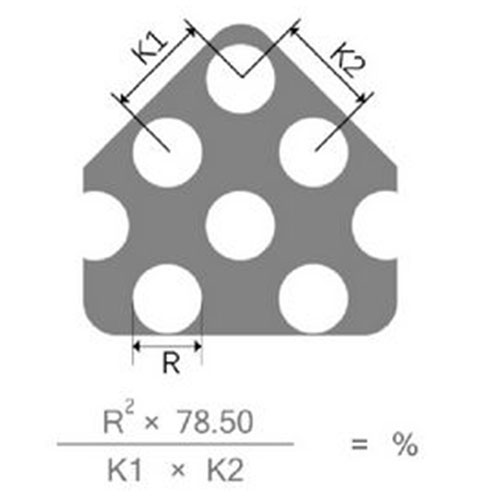

| 60°Hole staggered | 90°Hole | 45°Hole staggered |
Round Hole，,60°specification list
| Hole | Pitch | OA% | Hole | Pitch | OA% | Hole | Pitch | OA% | Hole | Pitch | OA% |
| mm | mm |
| mm | mm |
| mm | mm |
| mm | mm |
|
| 0.5 | 1 | 22.63 | 3 | 4 | 50.91 | 5 | 8 | 35.35 | 9 | 15 | 32.58 |
| 0.5 | 1.2 | 15.71 | 3 | 4.5 | 40.22 | 5 | 9 | 27.93 | 9 | 20 | 18.33 |
| 0.5 | 1.5 | 10.06 | 3 | 5 | 32.58 | 5 | 10 | 22.63 | 9 | 22 | 15.14 |
| 0.6 | 1 | 32.58 | 3 | 5.5 | 26.93 | 5 | 7 | 66.5 | 10 | 12 | 62.84 |
| 0.6 | 1.2 | 22.63 | 3 | 6 | 22.63 | 6 | 8 | 50.9 | 10 | 13 | 53.55 |
| 0.6 | 1.5 | 14.48 | 3 | 7 | 16.62 | 6 | 9 | 40.22 | 10 | 15 | 40.22 |
| 1 | 1.5 | 40.22 | 3.5 | 4 | 69.29 | 6 | 10 | 32.58 | 10 | 20 | 22.63 |
| 1 | 2 | 22.63 | 3.5 | 4.5 | 57.75 | 6 | 12 | 22.63 | 10 | 25 | 14.48 |
| 1 | 2.5 | 14.48 | 3.5 | 5 | 44.35 | 6 | 13 | 19.28 | 12 | 15 | 57.92 |
| 1 | 3 | 10.06 | 3.5 | 5.5 | 36.65 | 6 | 8 | 69.29 | 12 | 17 | 45.09 |
| 1.2 | 1.5 | 57.92 | 3.5 | 6 | 30.8 | 7 | 9 | 54.75 | 12 | 20 | 32.58 |
| 1.2 | 2 | 32.58 | 3.5 | 7 | 22.63 | 7 | 10 | 44.35 | 12 | 25 | 20.85 |
| 1.2 | 2.5 | 20.85 | 4 | 4.5 | 71.51 | 7 | 11 | 36.65 | 13 | 16 | 59.74 |
| 1.2 | 3 | 14.48 | 4 | 5 | 57.92 | 7 | 12 | 30.8 | 13 | 18 | 47.21 |
| 1.5 | 2 | 50.91 | 4 | 5.5 | 47.87 | 7 | 13 | 26.24 | 13 | 20 | 38.24 |
| 1.5 | 2.5 | 32.58 | 4 | 6 | 40.22 | 7 | 14 | 22.63 | 13 | 25 | 24.47 |
| 1.5 | 3 | 20.85 | 4 | 7 | 29.55 | 7 | 9 | 71.51 | 14 | 17 | 61.38 |
| 1.5 | 3.5 | 22.63 | 4 | 8 | 22.63 | 8 | 10 | 57.92 | 14 | 20 | 44.35 |
| 2 | 2.5 | 16.62 | 4 | 9 | 17.88 | 8 | 11 | 47.87 | 14 | 25 | 28.38 |
| 2 | 3 | 57.92 | 4.5 | 5 | 73.31 | 8 | 12 | 40.22 | 15 | 18 | 62.85 |
| 2 | 3.5 | 40.22 | 4.5 | 5.5 | 60.58 | 8 | 13 | 34.27 | 15 | 20 | 50.91 |
| 2 | 4 | 29.55 | 4.5 | 6 | 50.91 | 8 | 14 | 29.55 | 16 | 20 | 57.92 |
| 2 | 4.5 | 22.63 | 4.5 | 6.5 | 43.38 | 8 | 15 | 25.74 | 16 | 25 | 37.07 |
| 2 | 5 | 17.88 | 4.5 | 7 | 37.4 | 8 | 20 | 14.48 | 17 | 20 | 65.39 |
| 2.5 | 3 | 14.48 | 4.5 | 8 | 28.63 | 8 | 22 | 11.97 | 17 | 25 | 41.85 |
| 2.5 | 3.5 | 62.85 | 4.5 | 9 | 22.63 | 8 | 25 | 9.27 | 18 | 22 | 60.58 |
| 2.5 | 4 | 46.17 | 4.5 | 10 | 18.33 | 9 | 11 | 60.58 | 18 | 25 | 46.92 |
| 2.5 | 4.5 | 35.35 | 5 | 5.5 | 74.79 | 9 | 12 | 50.91 | 18 | 30 | 32.58 |
| 2.5 | 5 | 27.93 | 5 | 6 | 62.85 | 9 | 13 | 43.38 | 20 | 25 | 57.92 |
| 2.5 | 6 | 22.63 | 5 | 7 | 46.17 | 9 | 14 | 37.4 | 20 | 30 | 40.22 |
