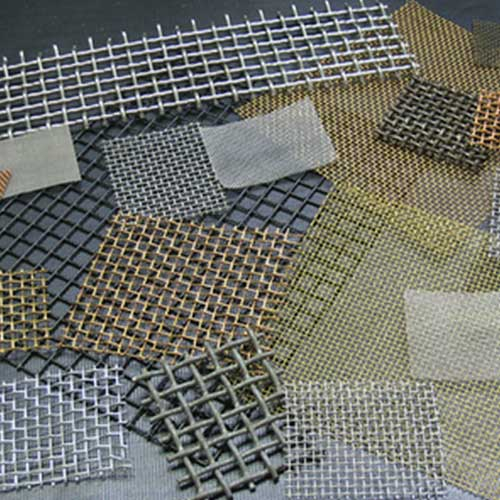

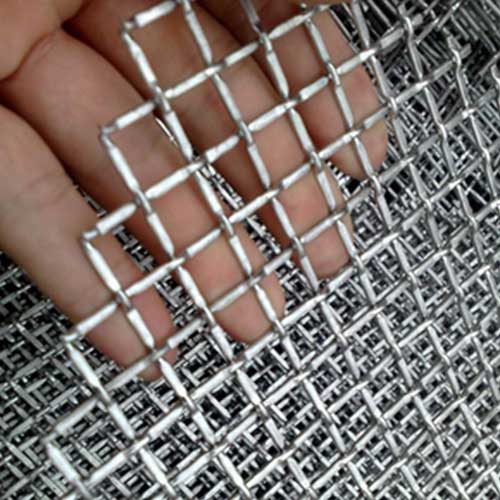

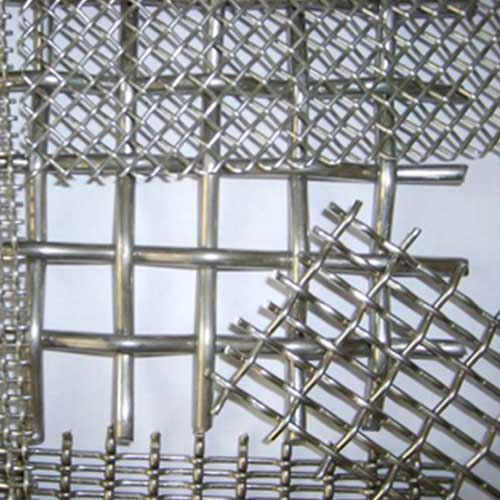

Crimped Woven Mesh

Crimped wire mesh will be produced according to customer's requirement.High carbon steel:45#,50#,55#,60#,70#,65Mn,72A,Stainless steel 304,321,316,2205,2507
Wire diameter: 1.37mm-12.7mm,Our finished wire is inspected by third party SGS,
Tolerance+_0.03mm .
Aperture/Opening:from 2mm to 100mm,tolerance +-3%
1.Aperture error:<3%,which is better than international standards ;
2.Wire diameter error :+-3%;
3.Diagonal error:<9mm every 2m .
Availability:

Crimped Woven Mesh Material :

High carbon steel:45#,50#,55#,60#,70#,65Mn,72A,Stainless steel 304,321,316,2205,2507

Wire diameter: 1.37mm-12.7mm,Our finished wire is inspected by third party SGS,

                           Tolerance+_0.03mm .

Aperture/Opening:from 2mm to 100mm,tolerance +-3%

                                 1.Aperture error:<3%,which is better than international standards ;

                                 2.Wire diameter error :+-3%;

                                 3.Diagonal error:<9mm every 2m .

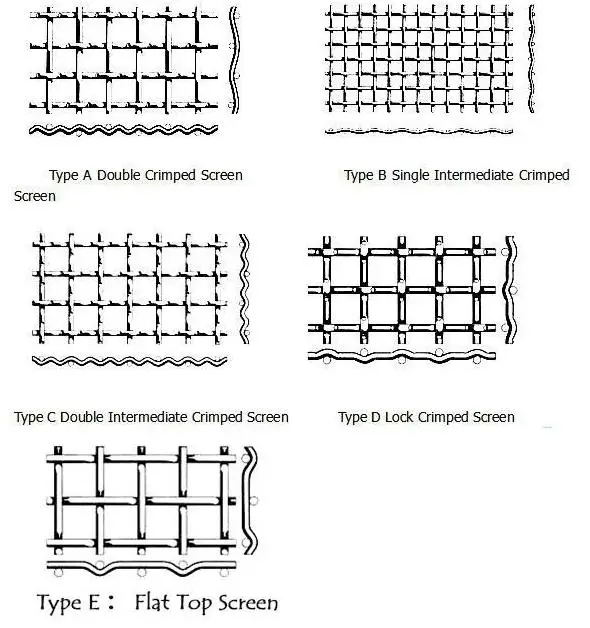

Weaving Types :double crimped screen,single intermediate crimp screen,double intermediate crimp screen,lock crimp screen,flat top screen,pressure welded screen .


Crimped Woven Mesh

Crimped Woven Mesh



Crimped Woven Mesh

Crimped Woven Mesh
