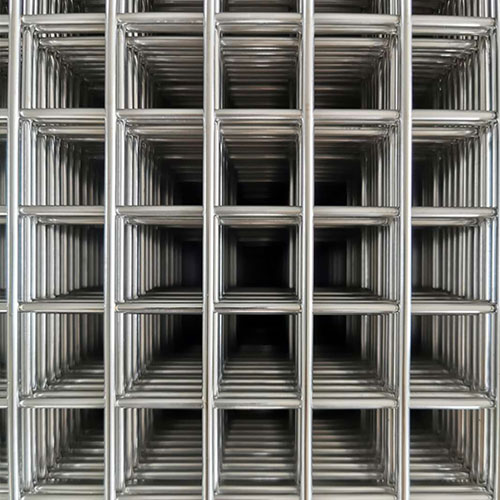

Welded Wire Mesh Specification:
Materials:high quality low carbon steel wire ,Stainless steel wire ,copper wire ,brass wire .
Weaving and characteristics ；including galvanizing after weaving ,galvanizing before weaving ;coated PVC ,have the strong characteristic of antisepsis and contradicting oxygenation .
Uses:used widely in industry ,agriculture ,building ,transportation ,mine field ,lawn ,cultivation ,machine guard ,decorate ,etc.
Width:up to 2.5 meter
Lenght: 100’or by request

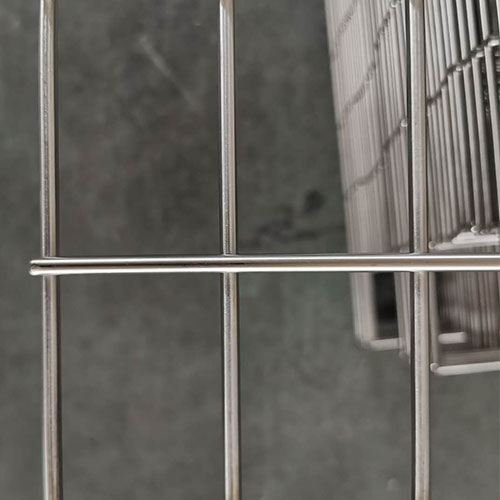

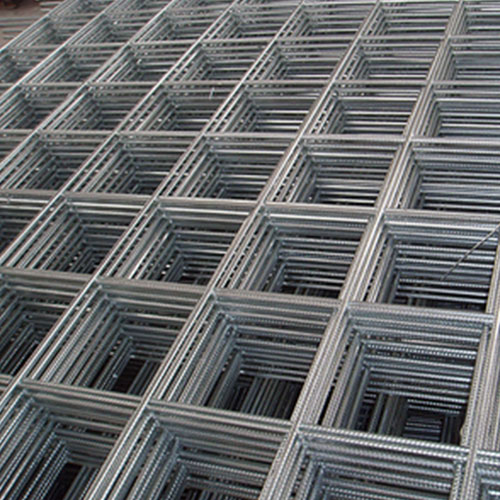

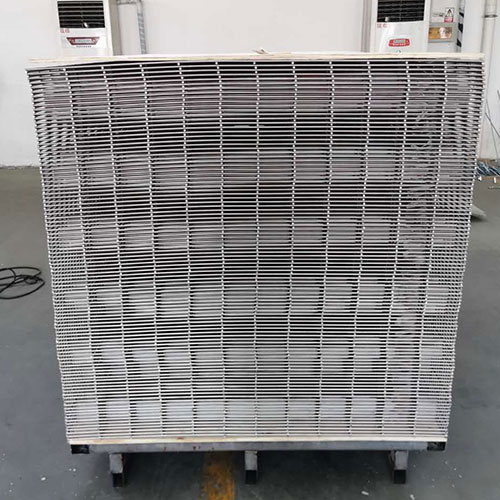

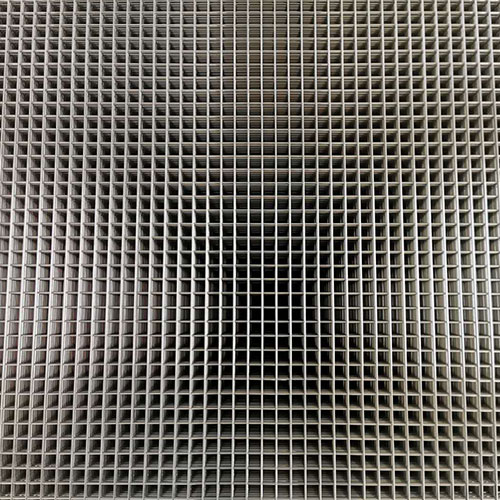

Welded Panel |
|
Welded Panel |
| Specification List of Welded Wire Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
| Galvanized Fencing Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
| 3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
| PVC Coated Welded Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
| 3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
