Welded Mesh Rolls

The introductions of products:
Materials: high quality low carbon steel wire ,Stainless steel wire ,copper wire ,brass wire .
Weaving and characteristics ;including galvanizing after weaving ,galvanizing before weaving ;coated PVC ,have the strong characteristic of antisepsis and contradicting oxygenation .
Uses: used widely in industry ,agriculture ,building ,transportation ,mine field ,lawn ,cultivation ,machine guard ,decorate ,etc.
Width: up to 2.5 meter

Welded Wire Mesh Specification:
Materials: high quality low carbon steel wire ,Stainless steel wire ,copper wire ,brass wire .
Weaving and characteristics ;including galvanizing after weaving ,galvanizing before weaving ;coated PVC ,have the strong characteristic of antisepsis and contradicting oxygenation .
Uses: used widely in industry ,agriculture ,building ,transportation ,mine field ,lawn ,cultivation ,machine guard ,decorate ,etc.
Width: up to 2.5 meter
Lenght: 100’or by request

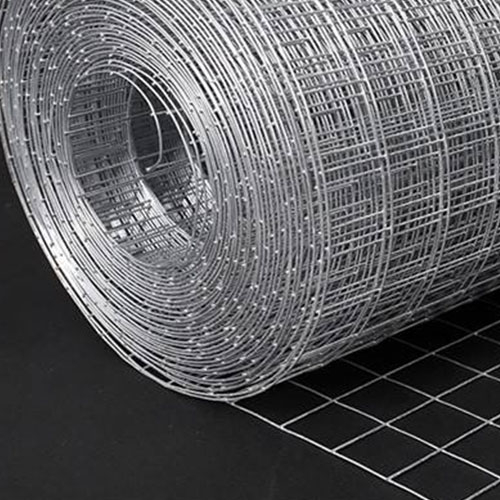

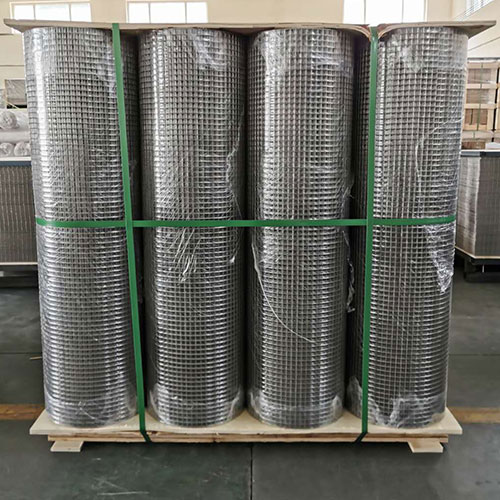

Welded Mesh Rolls

Welded Mesh Rolls



Welded Mesh Rolls

Welded Mesh Rolls


Specification List of Welded Wire Mesh
Opening Wire Diameter
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.



Galvanized Fencing Mesh
Opening Wire Diameter
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 756mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.

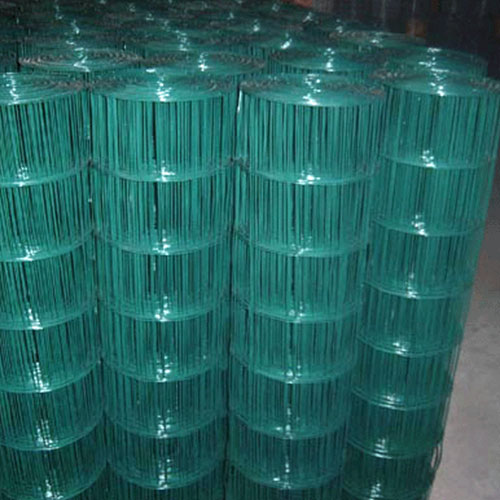

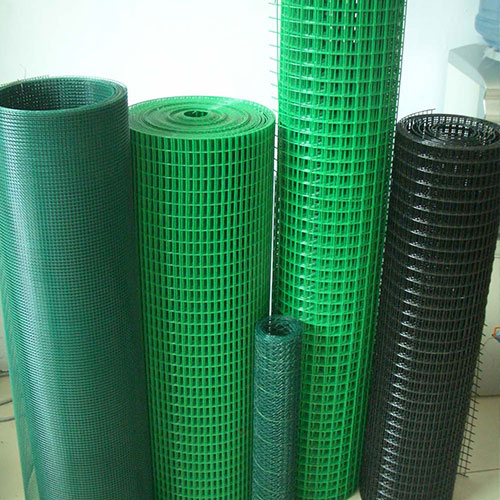

PVC Coated Welded Mesh
Opening Wire Diameter
In inch In metric unit(mm)
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21
3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
