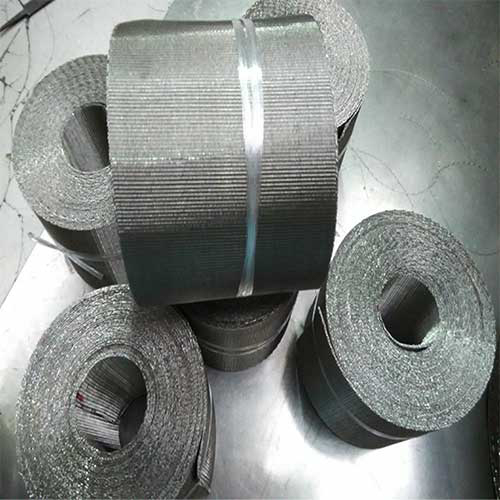

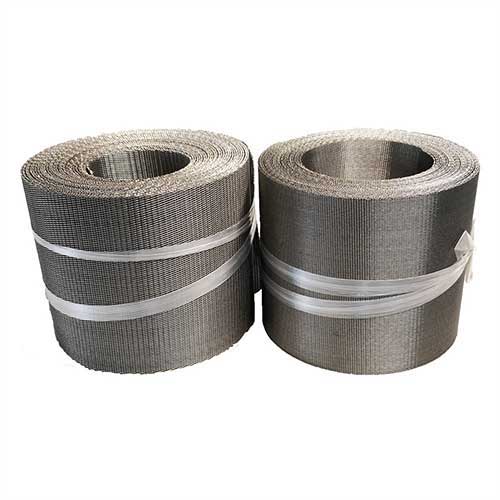

stainless steel reserve dutch weave mesh
Reverse Dutch Weave Wire Mesh involves in plain weave pattern, with many wires in warp direction having a thin diameter and relatively few wires in weft direction having a large diameter.

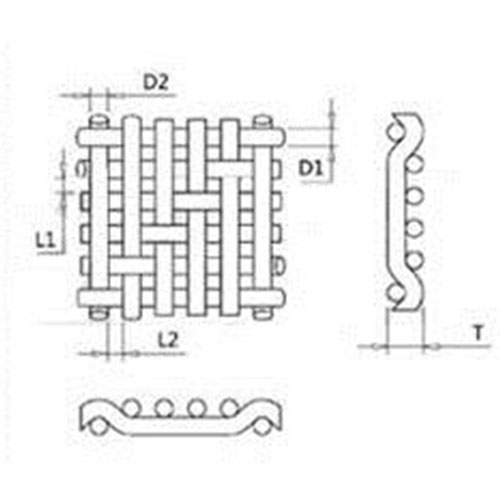

Five-heddle |
|

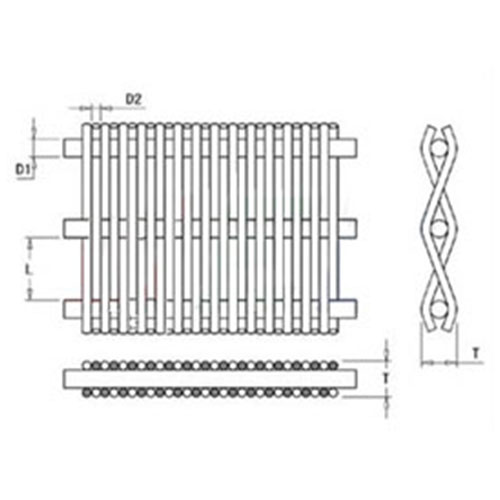

Reverse |
Reversed dutch weave mesh |
Mesh |
| Wire |
| Micro Rtention |
| Weight |
Warp | Weft | Warp mm | Weft mm | abs. μm | nom. μm | kg/m2 |
400 | 120 | 0.065 | 0.100 | 60-70 | 60 | 0.72 |
325 | 39 | 0.150 | 0.300 | 45-75 | 55 | 2.70 |
260 | 40 | 0.150 | 0.220 | 80-95 | 125 | 1.94 |
228 | 36 | 0.190 | 0.280 | 95-130 | 100 | 2.76 |
160 | 25 | 0.315 | 0.400 | 90-125 | 145 | 4.96 |
160 | 24 | 0.305 | 0.400 | 90-135 | 150 | 4.68 |
160 | 16 | 0.305 | 0.355 | 110-150 | 125 | 4.24 |
152 | 24 | 0 | 0.355 | 115-130 | 165 | 5 |
132 | 18 | 0 | 0 | 180-220 | 200 | 5 |
132 | 16 | 0 | 0.457 | 210-260 | 250 | 5 |
72 | 15 | 1 | 1 | 450-500 | 525 | 5.43 |
