Dutch woven weave cloth is composed of large weft yarn and small warp yarn. It is commonly used in industrial filtration with super fine filtration performance.
Dutch woven press cloth includes: Dutch plain weave, Dutch weave and anti-Dutch weave three ways.

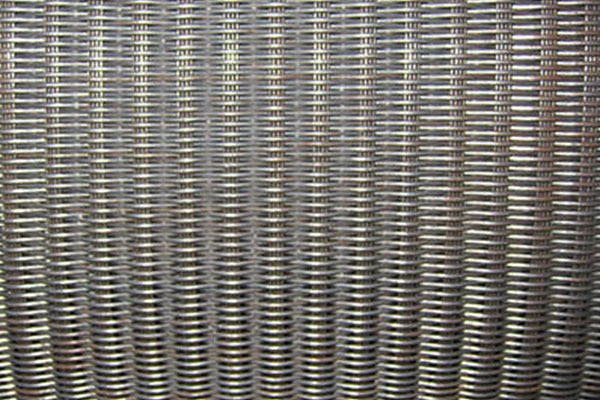

Plain Dutch weave is the same as plain Dutch weave with the difference that the diameter of the warp yarn is larger than the diameter of the weft yarn.
Dutch plain weave fabrics are made of a limited number of warps and a maximum number of wefts closely interwoven, resulting in cloth with no visible holes.The shape and position of the opening help to retain particles and increase the formation of the filter cake, and it is sturdy and stable, easy to clean, has good flow rate, and is suitable for high pressure liquid-solid separation
Parameters of plain Dutch woven meshof parameters :
Mesh No.(warp/ | Wire dia.(mm) | Wire dia.(inch) | Fineness of | Weight | Weight |
inch & weft/inch) | (warp & weft) | (warp & weft) | Filtering(micron) | (lb/square yard) | (kg/square meter) |
8/85 | 0.355/0.320 | 0.0140/0.01260 | 318-340 | 0.497 | 2.43 |
10/70 | 0.600/0.350 | 0.0240/0.01400 | 300-325 | 0.622 | 3.04 |
12/64 | 0.580/0.400 | 0.0230/0.01650 | 295-305 | 0.744 | 3.64 |
14/88 | 0.500/0.330 | 0.0190/0.01200 | 195-205 | 0.644 | 3.15 |
20/150 | 0.248/0.177 | 0.0098/0.00700 | 155-165 | 0.303 | 1.48 |
24/110 | 0.355/0.250 | 0.0150/0.01000 | 145-155 | 0.552 | 2.70 |
24/120 | 0.330/0.230 | 0.0130/0.00900 | 115-125 | 0.458 | 2.24 |
30/150 | 0.230/0.180 | 0.0090/0.00700 | 95-105 | 0.327 | 1.60 |
40/200 | 0.180/0.140 | 0.0070/0.00550 | 75-85 | 0.266 | 1.30 |
50/250 | 0.140/0.114 | 0.0055/0.00450 | 55-65 | 0.204 | 1.00 |
60/300 | 0.140/0.090 | 0.0055/0.00350 | 36-40 | 0.157 | 0.77 |
70/400 | 0.120/0.065 | 0.0047/0.00256 | 36-40 | 0.138 | 0.67 |
80/300 | 0.125/0.090 | 0.0049/0.00350 | 38-42 | 0.200 | 0.98 |
80/400 | 0.125/0.071 | 0.0049/0.00280 | 38-42 | 0.166 | 0.81 |
Plain Dutch weaving mesh of Features:
High temperature resistant
Corrosion and rust resistance.
Resistance to acid and alkali
Easy to clean, strong resistance to pressure
Plain Dutch weaving mesh application:
Petroleum, pharmaceutical, food, pharmaceutical, chemical and other industrie
